VSEE CCD Color Sorter Made In China suitable different material

FOB Reference Price:Get Latest Price
US $20,000-30,000 / Sets | 1 Set/Sets ccd color sorter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
VSEE
Model Number:
IC4
Type:
Grain Processing Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Yellow
Channels:
256
Application Materials01:
Paddy rice,polished round-grained nonglutinous rice
Application Materials02:
sesame, raisins
type:
color sorting machine
Supply Ability
Supply Ability:
60 Set/Sets per Month ccd color sorter
Packaging & Delivery
Packaging Details
Standard Wooden Box(Vacuum Package for Color Sorter)
Port
Shanghai,Ningbo,Guangzhou
Lead Time :
Shipped in 15 days after payment
Product Description

Product Application

Rice, coarse rice, black rice, white sesame, black sesame, peeled sesame, millet, black millet, sorghum rice, milled rice, wheat, buckwheat, oats, corn / corn flakes, sunflower / sunflower seeds, white melon seeds, pumpkin seeds, melon seeds, dried grapes, wolfberry fruit, almonds.almond, peanut garnish, dehydrated vegetables , Beans, red beans, mung beans, red beans, black beans, peas, coffee beans, lentils, green tea, black tea, fermented tea, white tea, cotton seed, rice seed, Plastic particles and cut tobacco.

SPECIFICATIONS FOR IC SERIES COLOR SORTER
Model
IC4
IC5
IC6
IC7
IC8
IC10
Capacity(t/h)
2-6
3-7
4-8
5-9
6-10
7-12
Accuracy
>99.8%
>99.8%
>99.8%
>99.8%
>99.8%
>99.8%
Waste
>8:1
>8:1
>8:1
>8:1
>8:1
>8:1
Voltage
220v 50Hz/60Hz
220v 50Hz/60Hz
     220v 50Hz/60Hz
 220v 50Hz/60Hz
 220v 50Hz/60Hz
 220v 50Hz/60Hz
Power(kw)
2.5
2.8
3.1
3.5
4.0
4.5
Pressure(Mpa)
≥0.6
≥0.6
≥0.6
≥0.6
≥0.6
≥0.6
Consumption (L/Min)
1500-2800
1600-3500
1800-3800
2000-4200
2200-4800
2500-5200
Weight(kg)
900
1200
1400
1600
1800
2100
Dimension(L*W*H)
1845*1627*2018
2145*1627*2018
2445*1627*2018
2745*1627*2018
3045*1627*2018
3645*1627*2018

1.the paremeters vary with shapes and grain size of raw meterials and defect rate,please kindly notice.
2.The above dimensions of the machine are only for reference,which are subject to change without notice.

Main Features

1. The color sorter uses 5000+Pixel high performances CCD sensors with resolution up 0.1mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Master control system adopts ARM9 embedded processor, and effectively enhances and control speed and color selection precision.
5.Overall unit adopts intelligent closed-loop control.
6.The operation interface adopts industrial grade 10 inch capacitive contact screen and features simple parameters setting and esay operation.
7.High speed air value is used to ensure quick response, low power consumption and long service life.
8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.

Certifications
Detailed Images

Machine Parts

Adopting the chips of FPGA and DSP from companies of ALTER and TI.

The forth generation processor technology of EPGA which sharply promoted the processing speed.

Machine Parts

With national patent certification, operating reached 12 billion times makes the solenoid valve is not a quick-wear part anymore, respond rapidly, lower air-consumption.

Machine Parts

The overall upgrade LED light source could adjust the output power light source according to those different material. Ensure the accurate abtaining of material's information. LED lighting system with radiating function makes it in longer using, lower energy consumption and better performance.

Machine Parts

Adopting HD full color 5000+ pixel CCD image sensor that reach the aim of distinguishing o.1mm are of object.

Machine Parts

Adopting 1300mm special technology chute makes material transfer more steddy and output increased 20%-30%, meanwhile, we also could provide plate-type and slot-type for meeting the various demand.

Machine Parts


Overall capacitive touch screen, easy hand operation , automatic parameter setting, multiple sorting mode saved and easy operation.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* whole machine testing before shipping..

* View our Factory, material testing.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1845 (L) * 1627 (W) * 2200 (H)
Weight
1000KG



Packaging Details
Use PE protective film to protect the machine. Standard wooden case.
Our client

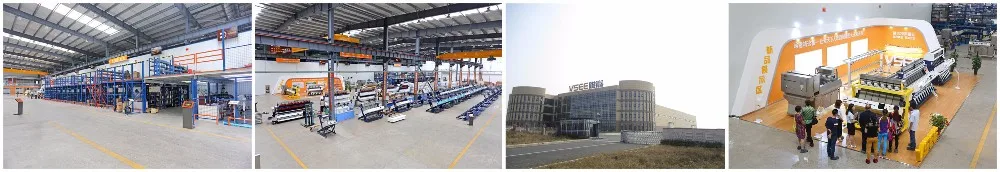

Our Company
